Polar Trailer HD 1500 Utility Trailers & Clam Shell Models

The single-axle models and the Tandem Walking Arm models carry identical tub sizes and load ratings — same poly tub, same frame, same capacity numbers. The axle configuration isn't a size upgrade. It's a terrain upgrade. Which one you need depends almost entirely on where you're hauling, not how much you're hauling.

How a Fixed Single Axle Actually Works

On a single-axle trailer, both wheels are mounted on one fixed shaft running straight across the frame. The whole axle moves as a unit. That works fine on flat driveways, groomed lawn, or compacted gravel paths — terrain where the ground stays roughly level under both wheels at the same time.

The problem shows up when one wheel hits something the other doesn't. A log, a rock, a rut on a hillside. When that happens, the fixed axle transmits the obstacle directly to the frame, and the load shifts with it. On severe cross-slopes with a heavy load — wet firewood, gravel, a full game haul — a single-axle trailer can tip. That's not a design flaw. It's physics. The trailer is doing exactly what a fixed axle does.

What the Walking Arm Actually Does

Polar's Tandem Walking Arm is a patented dual-axle system where each pair of wheels is mounted on an articulating arm rather than a fixed shaft. The arms pivot independently at a central mounting point, so when the rear wheel on one side hits a rock or log, that wheel rises to clear the obstacle while the front wheel on the same side stays planted. The tub stays level throughout. Think of it less like a suspension system and more like legs — each side walks over the obstacle rather than rolling over it as a rigid unit.

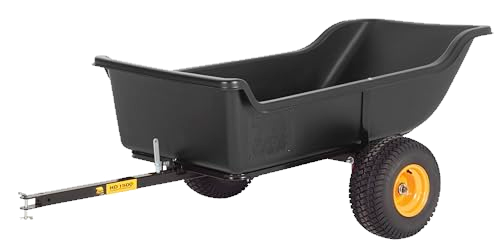

That mechanical difference is why the TA models weigh significantly more. The HD 1500 single axle ships at 127 lbs. The HD 1500 TA ships at 203 lbs. That's 76 lbs of additional axle hardware, arms, bearings, and mounting structure. You're not just paying for a second set of wheels — you're paying for an engineered mechanism with a patent behind it.

Terrain Decision Framework

Use this as a straightforward guide before you decide:

• Flat or groomed terrain — driveways, mowed lawns, compacted gravel, flat fields: Single axle is the right choice. It's lighter, easier to maneuver in tight spaces, and there's no terrain condition that requires the Walking Arm on level ground.
• Moderate slopes and occasional rough spots: Either will work, but the TA gives you a margin of safety on off-camber runs. If you're regularly crossing any hillside with a loaded trailer, the TA is worth it.
• Wooded terrain, forest trails, rocky hillsides, root-covered ground: The HD 1200 TA or HD 1500 TA — not optional. This is exactly the terrain the Walking Arm was engineered for. Logs, roots, rocks, and uneven forest floor will shift a single-axle load. The Walking Arm crawls over them.
• Hunting and game retrieval through timber: TA every time. You're dealing with deadfall, root systems, and soft ground under load. A single axle in that situation is asking for a tipped trailer in a bad spot.
• Ice fishing and winter use on flat frozen surfaces: Single axle is fine. Snow and ice on flat ground don't create the cross-slope instability that requires tandem arms.

The Weight Tradeoff Is Real

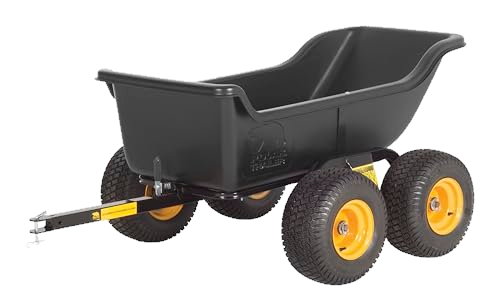

One thing worth saying plainly: the TA models are heavier to haul around. The HD 1200 TA at 192 lbs versus the single-axle HD 1200 at 107 lbs is an 85-lb difference in trailer weight alone. For smaller ATVs or lawn tractors near their towing capacity limits, that added trailer weight eats into your usable payload. Check your tow vehicle's rated towing capacity against the combined trailer weight plus your expected load before you order — not just the trailer's load rating.

Users on tractor forums have noted that the TA models feel smoother at the hitch point even on flat terrain, because the four-wheel contact distributes load differently than two. That's accurate. But smoothness alone doesn't justify the added weight penalty if your ground is flat. Choose based on terrain, not comfort.

Four types of buyers come to Polar Trailer with four genuinely different jobs. The right model depends on what you're hauling, what you're towing it with, and what the ground looks like between the loading spot and the dump spot. Here's how to figure out where you land.

The Rural Property Owner — 5 to 50 Acres, Real Work Year-Round

You're moving firewood, gravel, brush, and the occasional deer haul. You've got an ATV or a mid-size lawn tractor and you use the property hard in every season. Your terrain isn't manicured — there are soft spots in spring, frozen ruts in November, and at least a few wooded sections where the ground gets rough.

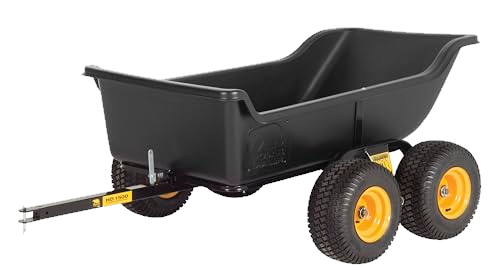

Recommended: HD 1500 TA (Model 8262). The 22 cu. ft. tub handles full firewood and brush loads without multiple trips, and the 1,500 lb capacity covers wet gravel and dense hardwood loads. The Tandem Walking Arm earns its weight on the mixed terrain most rural properties throw at it. If your property is genuinely flat — no hills, no wooded sections — the HD 1500 single axle (Model 8233) saves you the added trailer weight and still gives you the largest single-axle tub in the lineup.

Not for you if: You're only doing light garden work on a flat suburban lot. That's the LG Series' job, and it's a better fit for smaller tractors — the HD line starts at 107 lbs empty, which is more trailer than a small rider needs to haul compost and mulch.

The ATV and UTV Enthusiast — Technical Terrain, Serious Capacity

You ride regularly, you know your machine's tow rating, and you've probably already read the tractor forum threads comparing poly to steel. You want a trailer that can keep up with a full-size ATV on trails that aren't flat and doesn't fall apart after two seasons of real use.

Recommended: HD 1500 TA (Model 8262) for anything with technical terrain or regular off-camber towing. The 22 cu. ft. / 1,500 lb combination is the most capable single trailer in the poly lineup, and the Walking Arm handles what ATV trails actually look like — rocks, roots, and soft shoulders. If your trails are groomed and your loads are lighter, the HD 1200 TA (Model 8261) at 1,200 lbs / 15 cu. ft. is a well-matched option that's a bit easier to manage on tighter switchbacks.

One fitment note that comes up repeatedly in buyer reviews: the tongue is on the shorter side for very large-displacement ATVs. Buyers with full-size quads have noted that backing up requires practice. Verify tongue length against your specific machine before ordering, and know that a hitch coupler extension is an available option if needed.

Not for you if: You're towing a Polar trailer behind a street-registered ATV on paved or high-speed roads. These trailers are off-road only with a 10 mph maximum tow speed — that's a design parameter, not a suggestion.

The Yard and Garden Worker — Suburban or Semi-Rural, Lighter Loads

Your biggest hauls are mulch bags, topsoil, compost, and yard debris. You've got a riding mower or a small garden tractor and you want something that goes together fast, stores clean, and doesn't rust into the garage floor after a wet autumn.

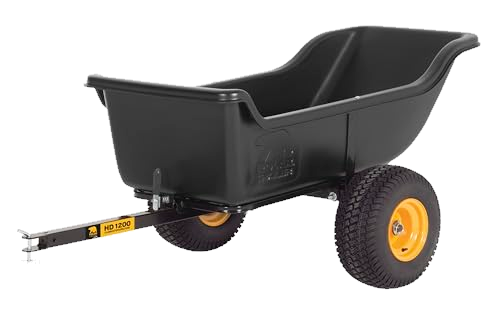

Recommended: If you're in the HD line at all, the HD 1200 single axle (Model 8232) fits this buyer better than the 1500 — the 15 cu. ft. tub is plenty for garden-scale loads and the trailer is lighter to maneuver around a yard. Honestly, though, this segment should look hard at whether the HD line is more trailer than the job requires. The HD series is engineered for 1,200–1,500 lb loads and weights 107–127 lbs empty. A smaller Polar LG Series cart handles mulch, compost, and light yard debris at a fraction of the weight with the same rustproof poly tub and sealed bearings.

Not for you if: You need terrain capability or hauling capacity above 900 lbs. Conversely, if you're regularly hauling gravel or wet topsoil, size up — 15 cu. ft. of wet soil can approach the weight limit before the tub looks full.

The Hunter and Outdoorsman — Game Hauls, Trail Access, Gear Transport

You're pulling tree stands, feed, and gear in on opening day and pulling a loaded trailer back out through timber that trails barely reach. Weight matters less than dependability in places where you can't call for help if something goes wrong.

Recommended: HD 1500 TA (Model 8262) for game hauling and full gear loads through wooded terrain. The 22 cu. ft. tub handles a large deer and gear in the same run, and the Walking Arm is the right mechanism for the deadfall and root systems you're navigating in the timber. For hunters who specifically need drainage — hauling birds, fish, or debris that benefits from an open basket — the HDM 1400 TA (Model 10812) with its military-grade steel mesh is a better fit. Wet loads drain through the mesh instead of sitting in standing water in the tub.

The Foot Pedal Latch (Model 10537) is worth adding for this use case. Releasing the dump latch with your foot while wearing heavy gloves is a real advantage on a cold October morning when your hands are full.

Not for you if: You're expecting highway towing to a remote trailhead. These trailers are off-road only — tow to the trailhead in a truck bed, deploy on the trail.

Every product in the Polar Trailer lineup has real limits that matter before you buy. These aren't edge cases — they're the documented issues that show up in actual buyer reviews and Amazon Q&A threads. Knowing them upfront saves a return and a bad experience.

Tongue Length on Large ATVs

This is the most consistent complaint across buyer reviews, and it's worth taking seriously. One buyer on shopabunda.com described it directly: "for my quad, which is a very large one, it could have a slightly longer tongue." The short tongue makes tight turns easier in wooded terrain — which is genuinely useful — but it also makes backing up more difficult, especially with full-size ATVs where the machine's rear end swings wide before the trailer responds.

If you're running a large-displacement quad or a full-size side-by-side, measure your hitch-to-rear-tire clearance before ordering. A hitch coupler extension can add usable tongue length if needed. Smaller ATVs and lawn tractors don't run into this at all — it's specific to larger machines.

Single-Axle Tip Risk on Severe Cross-Slopes

The HD 1200 and HD 1500 single-axle models are stable on flat and moderately sloped terrain. On severe cross-slopes under a heavy load, a single axle can tip — this appears in Amazon Q&A threads and is a real mechanical consequence of the fixed-axle design, not a product defect.

The threshold where this matters: if you're regularly crossing hillsides at more than a gentle grade with loads above 800 lbs, the single-axle models aren't the right choice. That's what the TA models exist to solve. The Walking Arm keeps the tub level on terrain the fixed axle can't handle. Buyers who read this beforehand and choose accordingly don't have tip problems. Buyers who choose the single axle expecting it to perform like a tandem on rough hillsides sometimes do.

Heaped Volume vs. Level Load

Polar's published cubic footage specs — 15 cu. ft. for the HD 1200, 22 cu. ft. for the HD 1500 — are heaped figures. That means loaded above the gunnel line. For loose dry material like wood chips or dry leaves, that number is achievable. For dense, wet materials — wet topsoil, gravel, wet firewood — you're going to hit the weight limit before you hit the heaped volume.

Specifically: 15 cu. ft. of wet topsoil weighs roughly 1,500–1,800 lbs depending on saturation. The HD 1200's rated capacity is 1,200 lbs. You can overfill the weight limit while the tub still looks half empty. Size on weight for dense materials, not volume. For wet gravel, wet soil, or rock loads on the HD 1200, a conservative 10–12 cu. ft. level load is a better working figure than the 15 cu. ft. heaped spec.

Maximum Tow Speed Is a Design Parameter

10 mph. That's the rated maximum tow speed for every Polar Trailer product. It's not a conservative recommendation — it's based on tire rating and frame dynamics. Exceeding it puts stress on the hitch, the frame welds, and the axle bearings that these trailers aren't engineered to handle.

For property work and hunting, 10 mph is rarely even an issue — trail speeds are typically 5–8 mph through the terrain these trailers are designed for. But if you're planning to tow across a large flat field or an access road at 15–20 mph, that's outside the design envelope. Off-road use only, 10 mph max. These are also not rated for highway towing under any circumstances.

Assembly for the Cage Accessory

The trailers themselves assemble straightforwardly — most HD models go together in about 20 minutes with basic hand tools. One buyer confirmed they were hauling loads under 45 minutes after opening the box. The cage/side rail accessory is a different story. Multiple buyers have noted the cage benefits from a second set of hands to hold components in position during installation. Solo installation is doable but slower. If you're adding the cage, plan to do it with a helper the first time.

Polar's accessory line is small but specific — each piece was designed for a real problem that the base trailer doesn't solve out of the box. Three of them come up consistently enough in reviews and community discussions to be worth explaining in detail.

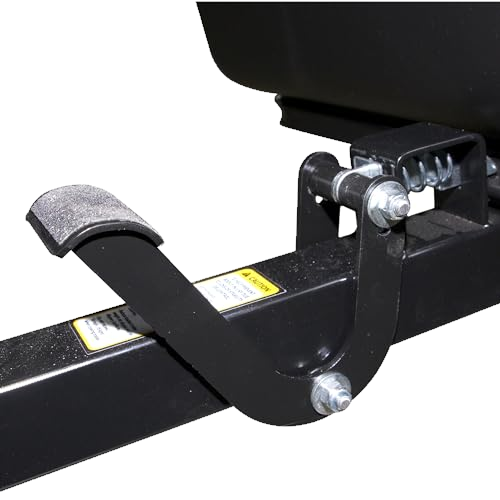

Foot Pedal Latch — Model 10537

The standard Polar quick-release latch works fine, but it requires bending down to push the latch mechanism while managing the tow vehicle and positioning the dump. The Foot Pedal Latch (Model 10537) replaces that sequence with a foot press — no bending, no hands required to release the tilt.

At 4.7 stars across 149 reviews, it's the highest-rated item in the entire product lineup. That rating reflects a simple reality: hands-free dumping matters more in actual use than it sounds on paper. It's particularly useful for hunters working alone in cold weather with gloves on, and for anyone doing repeated dump cycles during a long work day where bending to the latch starts adding up. The carbon steel body with powder coat finish matches the trailer's hardware, and all installation hardware is included. It fits most Polar trailers — check the Amazon listing to confirm fitment with your specific model before ordering.

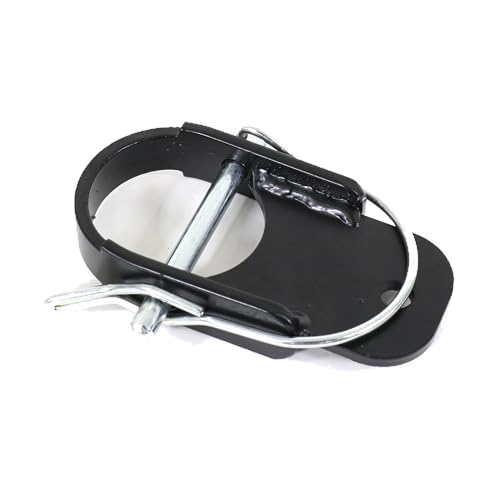

Ball Hitch Adapter — Model 17449

ATVs and UTVs with pin-style hitches can't connect directly to a standard 2-inch ball coupler without either removing the pin hitch or using an adapter. The Ball Hitch Adapter (Model 17449) solves that without requiring any hardware removal — it allows pin-style hitch users to tow while leaving their existing ball hitch in place.

This one has a narrow audience: if your machine already has a standard ball hitch, you don't need it. But if you're running an ATV with a pin-style receiver and you've been staring at the connection problem, this is the purpose-built answer. It carries a 1-year warranty, consistent with the rest of the Polar line, and is designed specifically for ATV and UTV use. Highway use is outside its intended application, same as the trailers themselves.

Side Rail Kit — 1200 and 1500 Series

The Side Rail Kit adds load volume by extending the effective height of the tub walls, allowing you to pile lighter materials — dry firewood, leaves, wood chips, brush — higher without losing material over the sides. The Fat Rancher review noted it directly: "One accessory you do want is the Polar Sport Side Rail."

It's the right upgrade for buyers who primarily haul bulky, light materials where volume is the constraint rather than weight. A full load of dry split oak in the HD 1500 without side rails is manageable. A load of green brush or loose leaves without them loses material on rough ground. The Side Rail Kit is listed in Polar's accessory lineup for the 1200 and 1500 Series — check the accessory page on the Polar Trailer Amazon store for model-specific fitment, since the kit dimensions differ between the HD 1200 and HD 1500 tub sizes.

What Polar Doesn't Make That Buyers Ask About

A few things come up in questions that don't have Polar-specific solutions. Extended tongue pieces beyond the ball hitch adapter aren't currently in the Polar accessory catalog — buyers needing additional tongue length for large ATVs are working with aftermarket coupler extensions. Polar also doesn't offer a factory cover for the HDM mesh series, so buyers who want weather protection on the mesh basket are adapting general-purpose cargo covers. Neither of these gaps are dealbreakers, but they're worth knowing before you assume Polar's accessory line covers every configuration need.

Every Polar Trailer product carries a 1-year manufacturer's warranty against manufacturing defects, starting from the original purchase date. The warranty is administered through Clam Outdoors — the parent company (Clam Corporation) that manufactures the Polar Trailer line out of Rogers, Minnesota.

What the Warranty Covers and What It Doesn't

The warranty covers defects in materials and workmanship under normal use. It doesn't cover wear from regular use, damage from misuse or overloading, modifications to the product, or failure caused by exceeding the 10 mph maximum tow speed or using the trailer for highway towing. It's also non-transferable — if you buy a used Polar Trailer, the warranty doesn't carry over to you from the original purchaser.

Proof of original purchase is required for any warranty claim. Register your trailer with Clam Outdoors immediately after purchase. That step makes any future claim straightforward rather than a search for a years-old receipt.

Where to Buy Parts and Accessories

Polar Trailer replacement parts and accessories are stocked at several major retailers — Northern Tool, Tractor Supply, Acme Tools, and Fleet Farm all carry Polar products. For accessories specifically, the Polar Trailer Amazon store page lists the current accessory catalog including the Foot Pedal Latch (Model 10537), Ball Hitch Adapter (Model 17449), Side Rail Kits, and trailer covers. Availability at physical retail locations varies by region, so calling ahead before driving to a store for a specific part is worth the 90 seconds.

For warranty claims specifically, contact Clam Outdoors directly through their website. Amazon purchase support handles order and shipping issues — warranty claims go through the manufacturer, not through Amazon's return system.

Realistic Parts Availability Notes

The HDM 1400 and HDM 1400 TA mesh trailers are specialty products with limited Amazon stock noted in the listings (8 units and 2 units respectively at the time of this writing). If you're buying a mesh model, don't assume parts availability at general outdoor retailers will match what's available for the higher-volume HD poly series. The accessories for the mesh models are less commonly stocked than HD 1200 and HD 1500 accessories. Factor that in if long-term parts availability matters to your purchase decision.

For the HD poly series — the HD 1200, HD 1500, and their TA counterparts — parts availability through major retailers is reliable. These are the highest-volume models in the lineup and have been in production long enough that the parts supply chain is well-established.

Polar Trailer's product line has a genuine overlap with hunting and ice fishing use cases that most affiliate content doesn't get into specifically. The design requirements are different from general property work — and the model choices follow from those differences.

Game Hauling Through Timber

Getting a whitetail or an elk out of wooded terrain is a different problem than moving gravel across a flat lawn. The ground between the animal and the trail is usually root-covered, soft, and uneven. The HD 1500 TA (Model 8262) is the right trailer for this job. The 22 cu. ft. tub handles a large deer and associated gear in a single load, the 1,500 lb capacity covers even a large bull elk quartered out, and the Walking Arm crawls over the deadfall and root systems that fixed-axle trailers fight.

At a 10 mph maximum tow speed, these trailers are designed for exactly the kind of slow trail work game retrieval requires. That speed limit isn't a constraint in the timber — it's a match for the terrain. Trail speeds of 5–7 mph through rough wooded ground are the norm, and the Walking Arm was built for those conditions.

Where the Mesh Trailer Fits

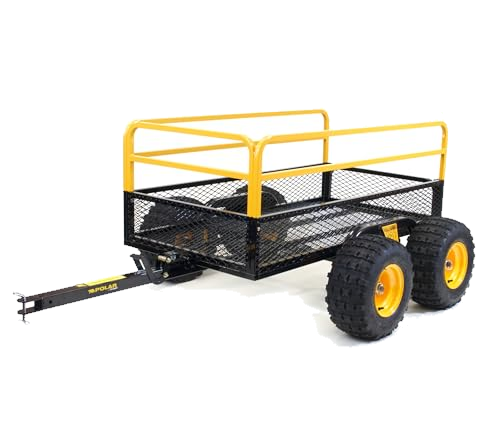

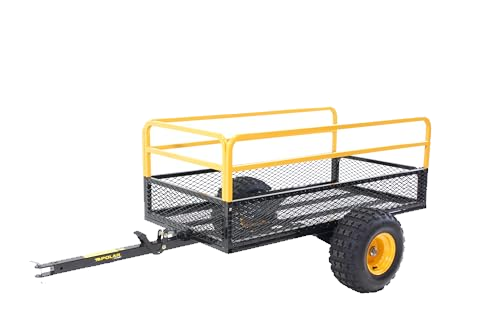

The HDM 1400 (Model 10738) and HDM 1400 TA (Model 10812) are the right choice when drainage matters more than containment. Waterfowl hunters moving birds, fish hauling after an ice fishing session, or anyone moving loads that create standing water in a closed poly tub — these buyers benefit from the military-grade steel mesh basket that lets liquid drain through rather than pool.

One note from an actual Polar mesh trailer user on Reddit's r/ATV: "the tire seals kept popping" on an earlier mesh model, which the user resolved by adding inner tubes. That's worth knowing if you're running the mesh trailer in conditions where tire pressure drops are more likely — cold weather, rough rocky terrain, or extended low-speed trail use. Adding tubes is a straightforward fix, but it's not something the stock setup requires on the poly models.

The Foot Pedal Latch Matters More Here

Cold weather, heavy gloves, solo operation — all three show up at once on a November deer haul or an early-morning ice fishing session. The Foot Pedal Latch (Model 10537) is the single most relevant accessory for this audience. Releasing the dump latch with your boot while your hands are occupied is a practical advantage the standard latch doesn't offer. At 4.7 stars across 149 reviews, it earns that rating most visibly in exactly these conditions.

Ice Fishing Setup Notes

For ice fishing, the HD 1200 (Model 8232) and HD 1500 (Model 8233) single-axle models are well-matched to flat ice surface hauling — shelter panels, augers, bait buckets, and gear loads fit well within the 1,200–1,500 lb capacities. The poly tub's UV-resistant, crack-resistant construction holds up under repeated freeze-thaw cycles better than steel beds, which can develop rust at welds and hardware points after a few winters of exposure to ice melt and brine.

Flat ice doesn't require the Walking Arm — save that weight for the terrain that needs it. The sealed ball bearings are specifically useful here: you won't be pulling the trailer off the ice to grease bearings before the next trip out.
